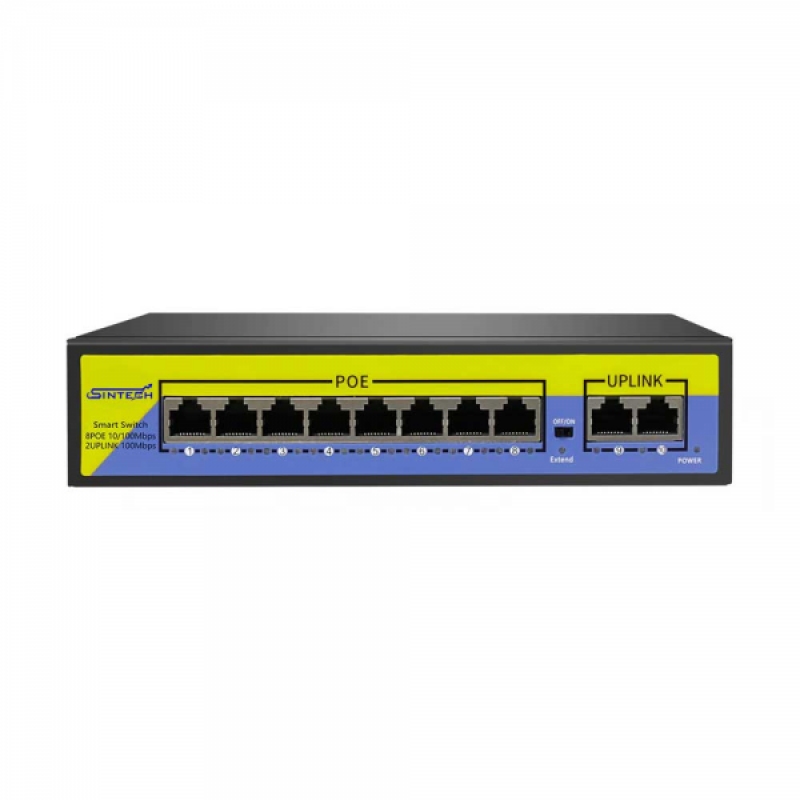

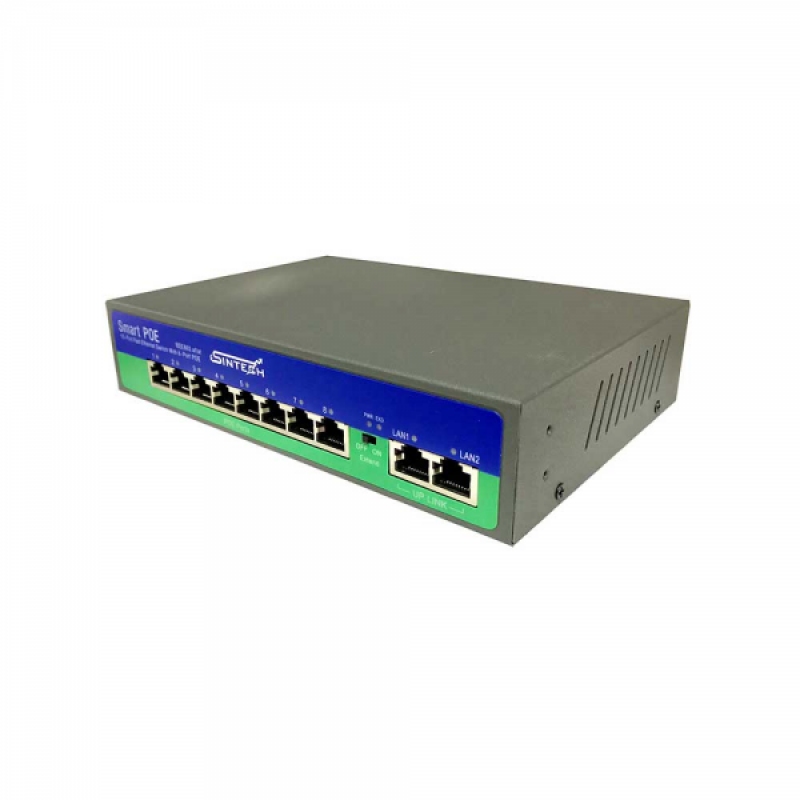

=>  8+2 Ports Smart POE Switch

=>  8 ports for POE Camera & 2 ports Uplink

=>  RealTek heavy duty chipset

=>  Transmission rate: 10/100Mbps

=>  Background bandwidth : 2Gbps

=>  POE Standard : 802.3af/at PoE standard

=>  Indicator light : Every port, Yellow: Data ,Green: POE

=>  Transmission distance : 200-250 mtrs

=>  Output: 52V / 2.3A each port

=>  Switch for Extended mode on/off

Full specifications:

• Product: 8+2 Port 250m POE Switch
• POE Port: 1 to 8 support IEEE802.3AF/AT Standard
• Output Power: 15.4W/30W    IEEE802.3af/at
• Power Pin: Both 1/2+,3/6- and 4/5+7/8-
• Whole Power: ≤120W (52V 2.3A)
• POE Protocol: IEEE 802.3af/IEEE 802.3at
• POE Type: End-span
• Power Distance: ≤250m
• Network Standard: IEEE 802.3, IEEE802.3u,802.3x,802.3af/at
• Network Medium: 10/100BASE-TX:5 class and above non shielded twisted pair
• Data Distance: ≤250m
• Switch Capability: 2Gbps
• Forwarding Mode: Store and forward
• Forwarding Rate: 10BASE-T:14880PPS/port or 100BASE-tx:14800pps/port
• MAC Address: MAC address table 1K
• Port Function: Power priority mechanism, fast and forward, MAC automatic learning and aging, IEEE802.3X Full-duplex and mode and backpressure for Half-duplex mode
• LED Indicator: LINK/ACT.100Mbps; POE Status Indicator; Power indicator; Extender
• Working Environment: Working temperature:-10°-- 55°C
• Weight: 0.95kg
• Size: 197mm*75mm*30mm(L*W*H)
