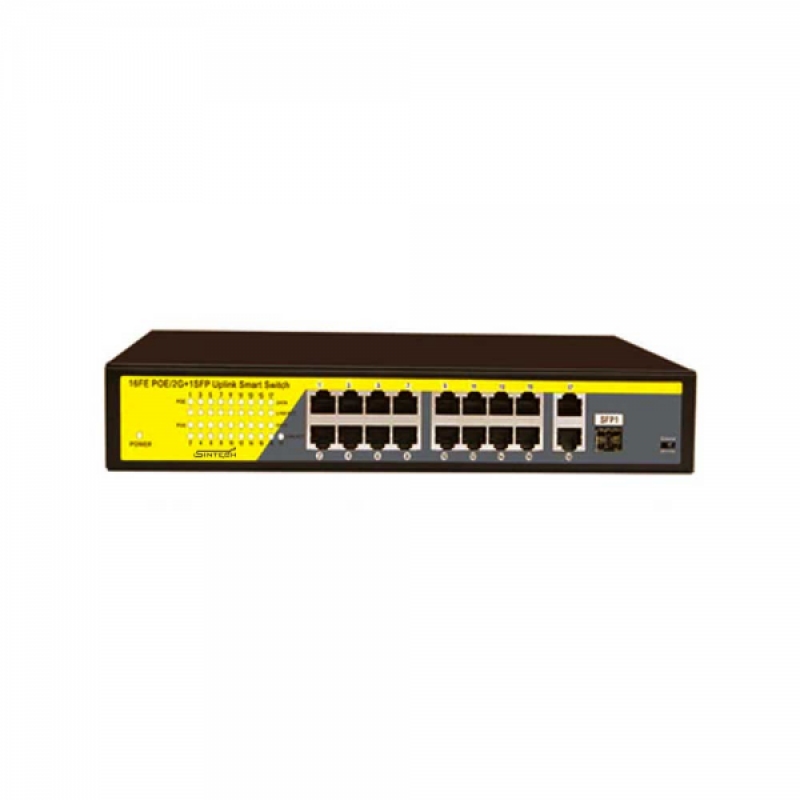

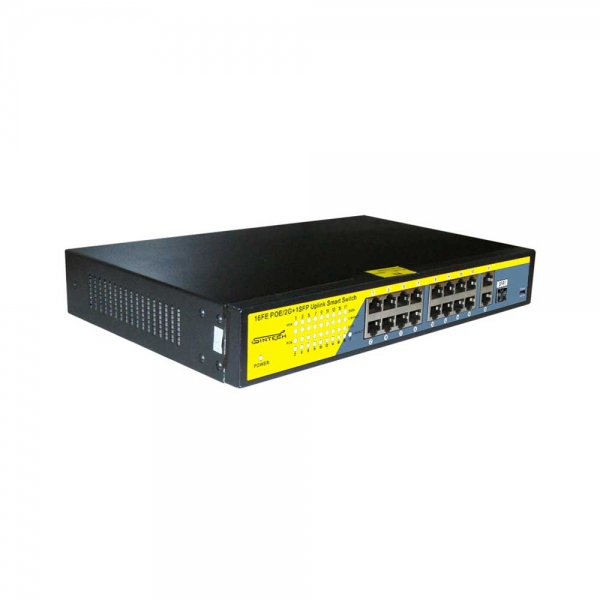

19 Ports Sintech Smart POE Switch (16+3)

Home  /  POE Switch

This is a professional Smart POE Switch. It is a durable and strong product with one year warranty.

  • 16+3 Gigabit Ethernet Smart POE Switch
  • Trans. rate: 16*10/100Mbps + 2*10/100/1000Mbps + 1*SFP
  • Background bandwidth: 7.2Gbps
  • Output: 52V / 3.85A each port
  • Transmission distance: 200 to 250 meters
Model Number : ST-1519P Category : ,
Order Now

=>  16+3 Ports Smart POE Switch

=>  16 ports for POE Camera, 2 ports Uplink & 1port SFP

=>  RealTek heavy duty chipset

=>  Transmission rate: 10/100/1000Mbps

=>  Background bandwidth : 7.2Gbps

=>  POE Standard : 802.3af/at PoE standard

=>  Indicator light : Every port, Yellow: Data ,Green: POE

=>  Transmission distance : 200-250 mtrs

=>  Output: 52V / 3.85A each port

=>  Switch for Extended mode on/off


Full specifications:

  • Product: 16+3 Port 250m POE Switch
  • POE Port: 1 to 16 support IEEE802.3AF/AT Standard
  • Uplink Port: 2*10/100/1000Mbps
  • SFP Port: 1*10/100/1000Mbps
  • Output Power: 15.4W/30W    IEEE802.3af/at
  • Power Pin: Both 1/2+,3/6- and 4/5+7/8-
  • Whole Power: ≤200W (52V 3.85A)
  • POE Protocol: IEEE 802.3af/IEEE 802.3at
  • POE Type: End-span
  • Power Distance: ≤250m
  • Network Standard: IEEE 802.3, IEEE802.3u,802.3x,802.3af/at
  • Network Medium: 10/100BASE-TX:5 class and above non shielded twisted pair
  • Data Distance: ≤250m
  • Switch Capability: 7.2Gbps
  • Forwarding Mode: Store and forward
  • Forwarding Rate: 10BASE-T:14880PPS/port or 100BASE-tx:14800pps/port
  • MAC Address: MAC address table 1K
  • Port Function: Power priority mechanism, fast and forward, MAC automatic learning and aging, IEEE802.3X Full-duplex and mode and backpressure for Half-duplex mode
  • LED Indicator: LINK/ACT.100Mbps; POE Status Indicator; Power indicator; Extender
  • Working Environment: Working temperature:-10°-- 55°C
  • Weight: 0.95kg
  • Size: 197mm*75mm*30mm(L*W*H)
