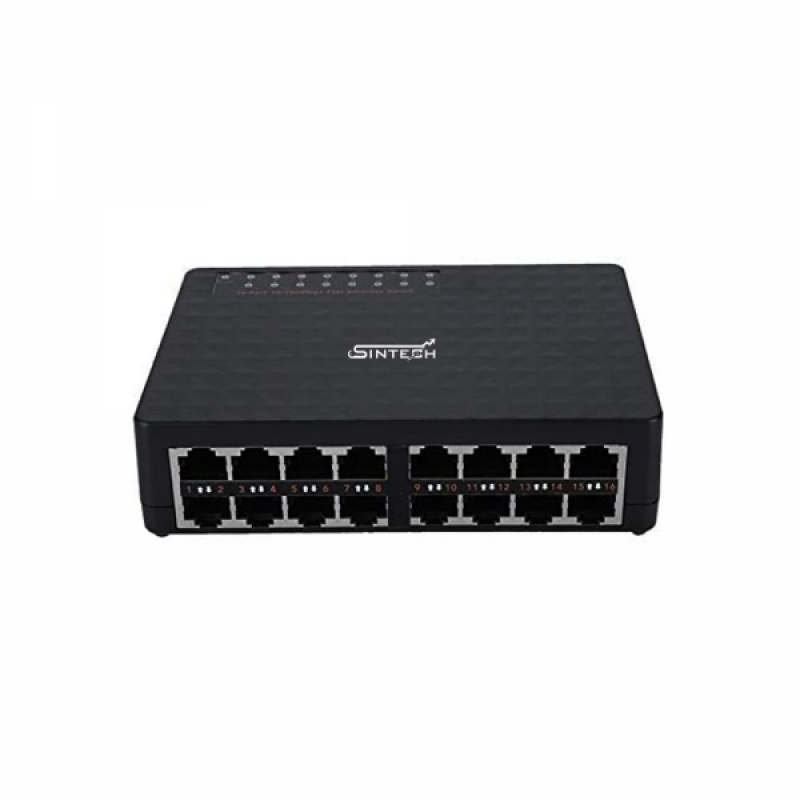

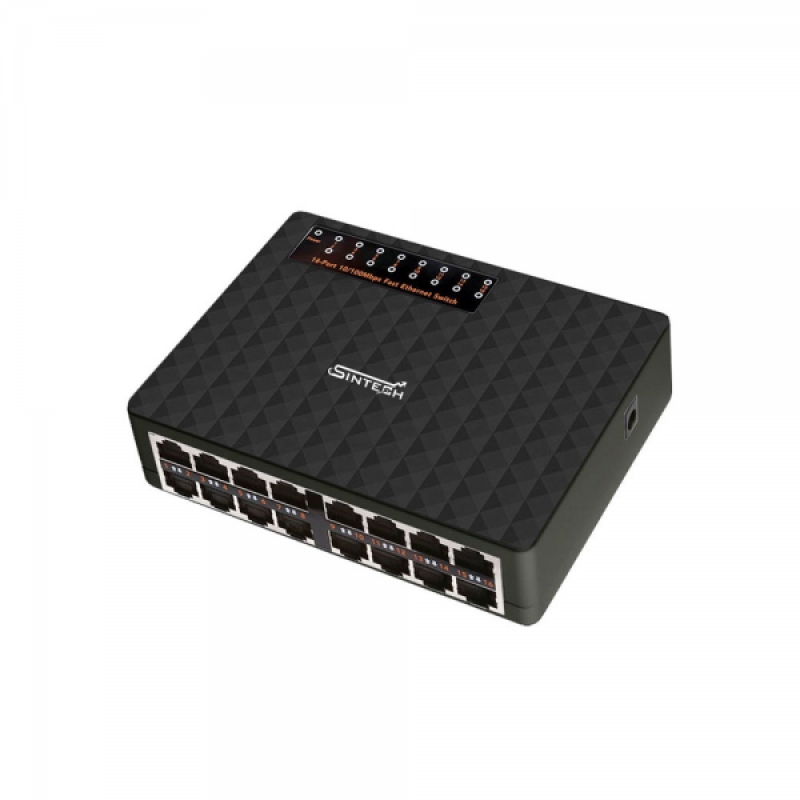

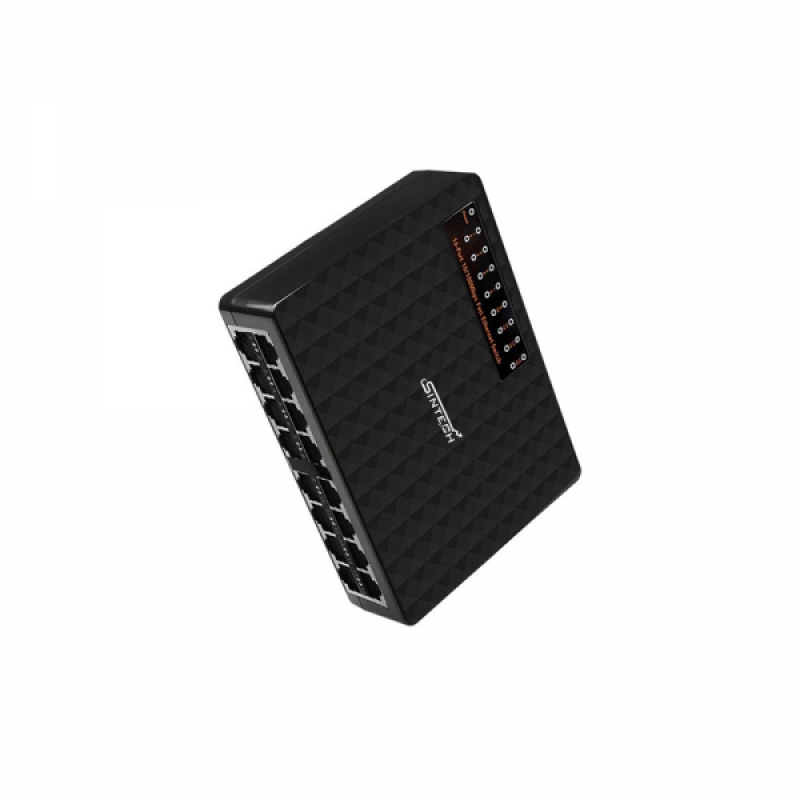

- Model: ST-116M
- Transmission Rate: 10/100Mbps
- Switching Capacity: 3.2Gbps
- Buffer Size: 1.5Mbit
- MAC Address Table: 2K
- Communication Mode: Full-Duplex & Half-Duplex
- Function: LACP
- Standards and Protocols: IEEE 802.3, IEEE 802.3u, IEEE 802.3x
- Interface: 16 10/100Mbps RJ45 Ports, Auto Negotiation/Auto MDI/MDIX
- Forwarding Mode: Store-and-Forward
- Network Media: 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
- 100BASE-TX: UTP category 5, 5e or above cable (maximum 100m)
- Power Supply: External Power Adapter (Output: 5VDC/1A)

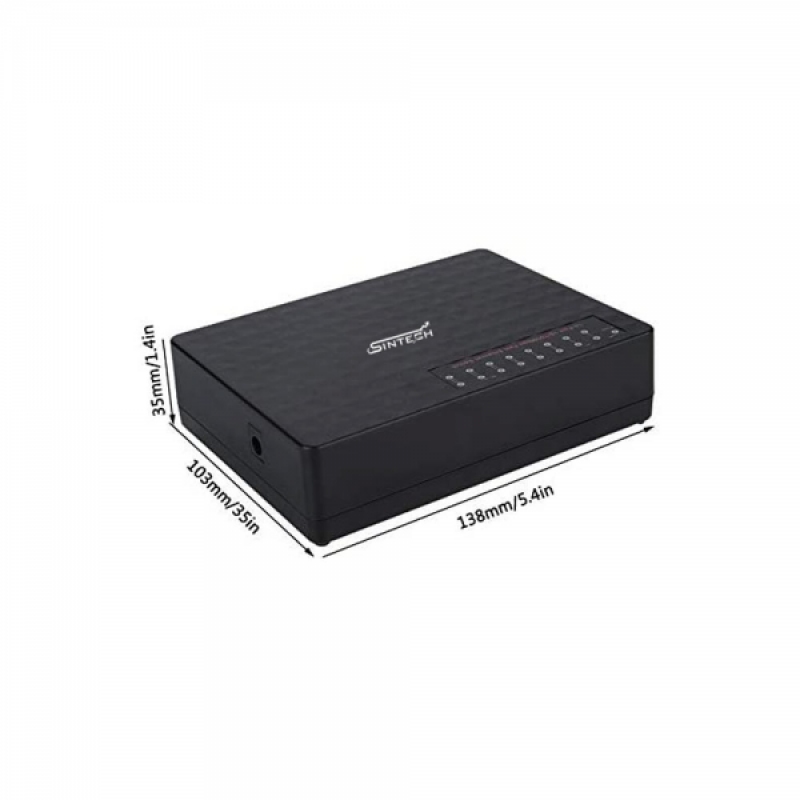

- Dimensions: 138*103*35 mm
- Weight: 0.228kg
- LED: Power, Link/Act
- Fanless: Yes
- Packet Filtering/Forwarding Rate: 148,800 pps for 100M 14,880 pps for 10M
- Power Input: DC5V / 1000mA
- Certifications: CE, FCC, RoHS
- Operating Temperature: 0°C~40°C(32°F~104°F)
- Storage Temperature: -40°C~70°C(-40°F~158°F)
- Operating Humidity: 10%~90%RH non-condensing
- Storage Humidity: 5%~90%RH non-condensing
- Body type & color: Plastic body / Black
