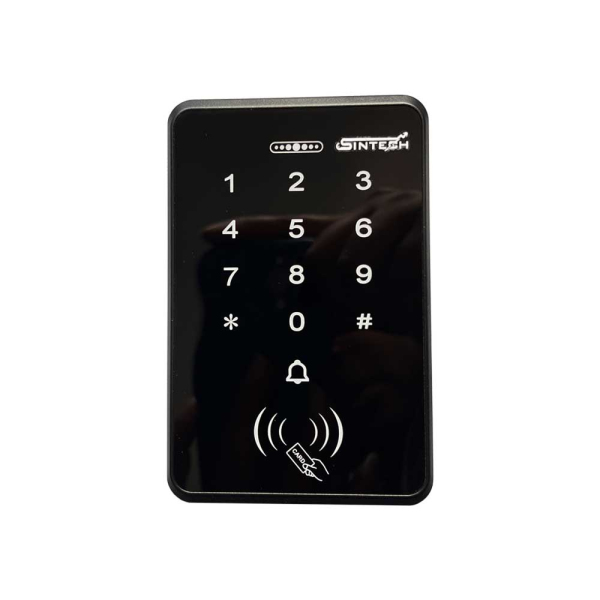

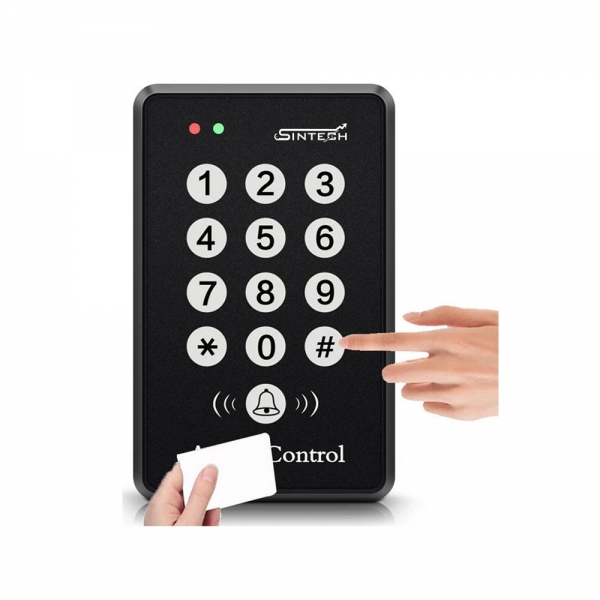

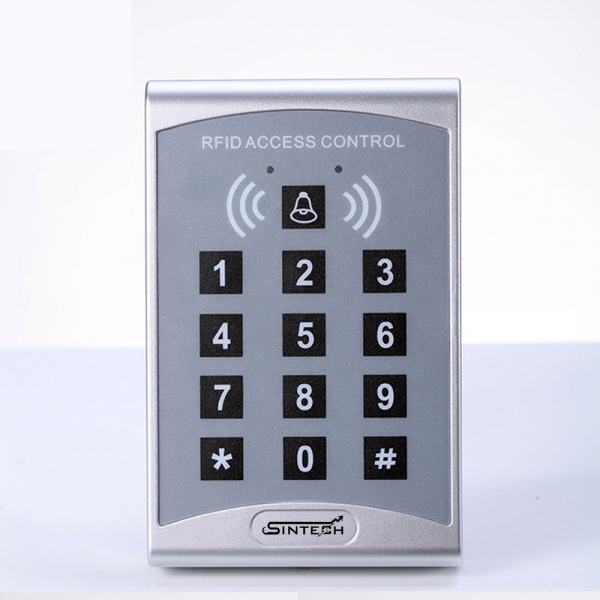

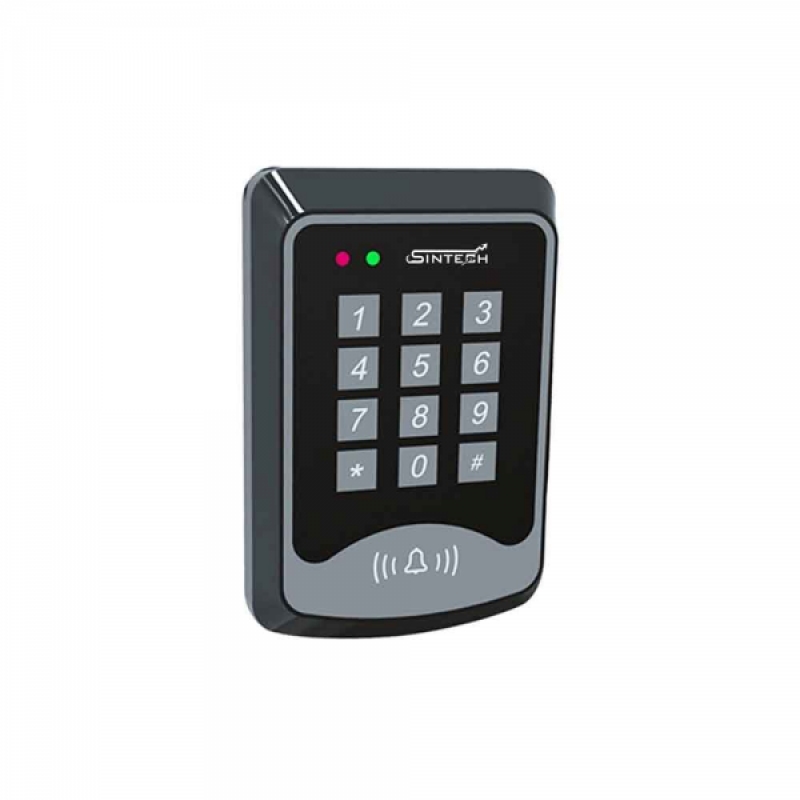

- Standalone Access Control System

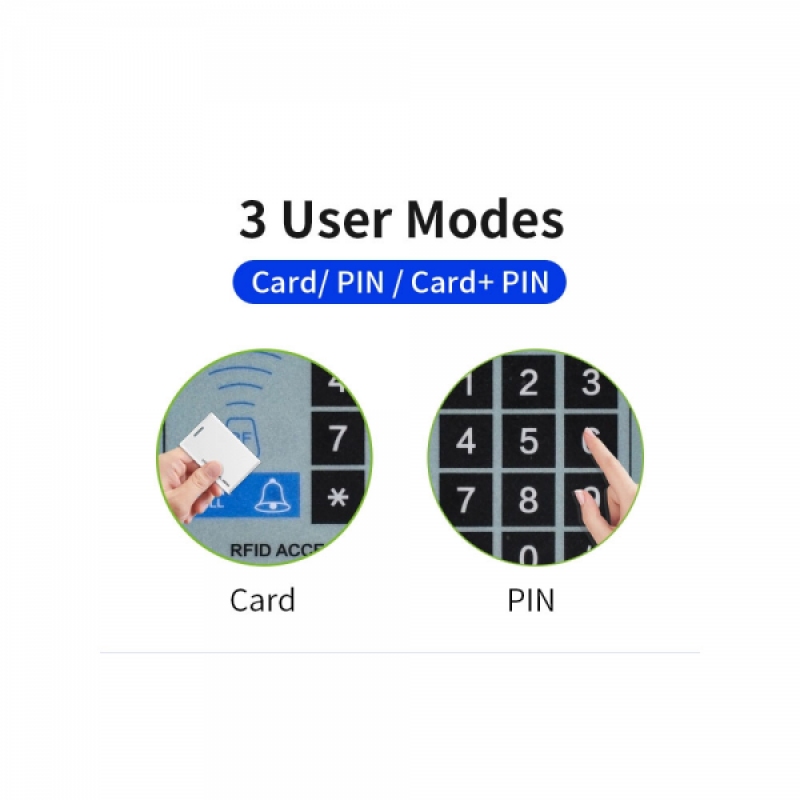

- Support: EM Card, Password
- Capacity: 1000 Cards, or Card+Pin
- Capacity: 1000 Password
- Built-in EM Reader

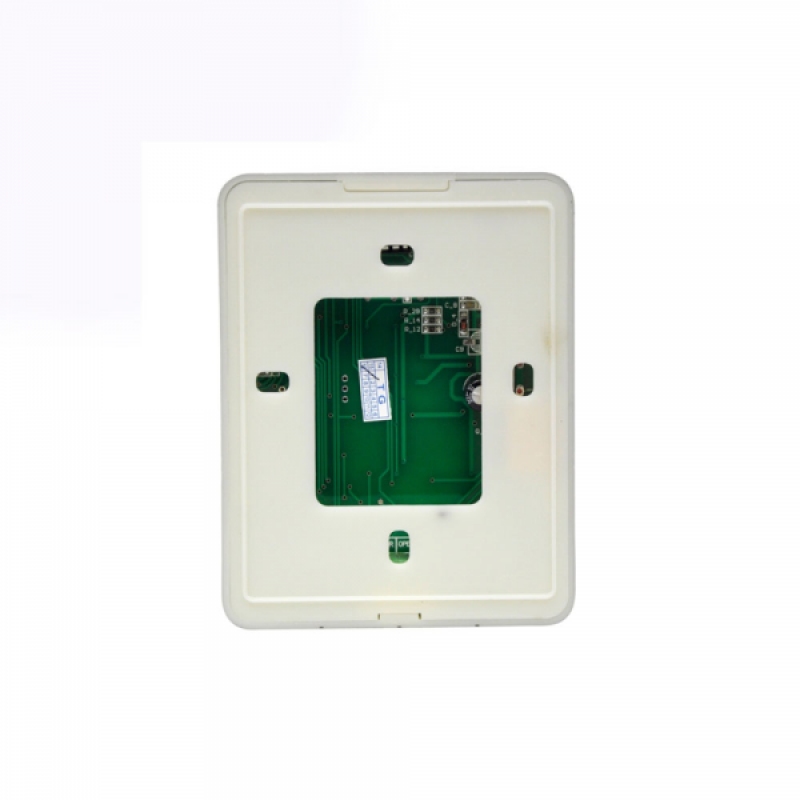

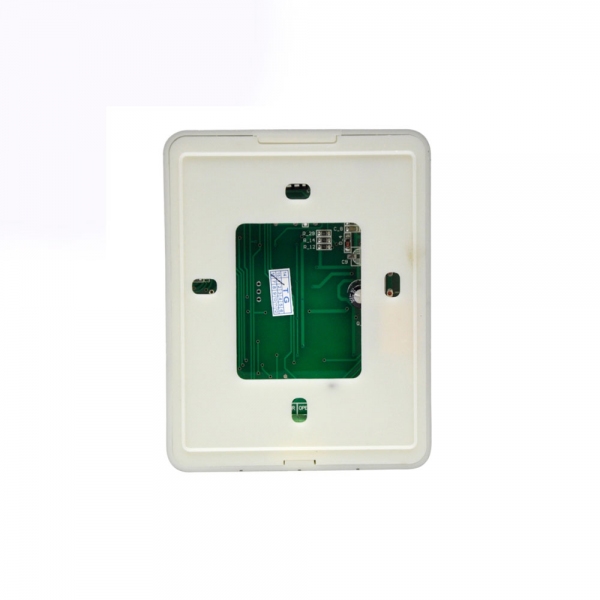

- Built-in Controller Board
- LED Display
- Application: Office, Apartment, House
- Size: 115Lx70Wx20H (mm)
- Frequency: 125Khz EM card
- Card Reading Distance: 5-10 cm
- Operating Voltage: DC 12V±10%
- Active Current: <100mA
- Idle Current: 25±5 mA
- Voltage: 12VDC, 2A
- Operating Temperature: -45°C~60°C
- Operating Humidity: 10%- 90% RH
- Waterproof: No
- Wiegand Interface: Wiegand 26 bit

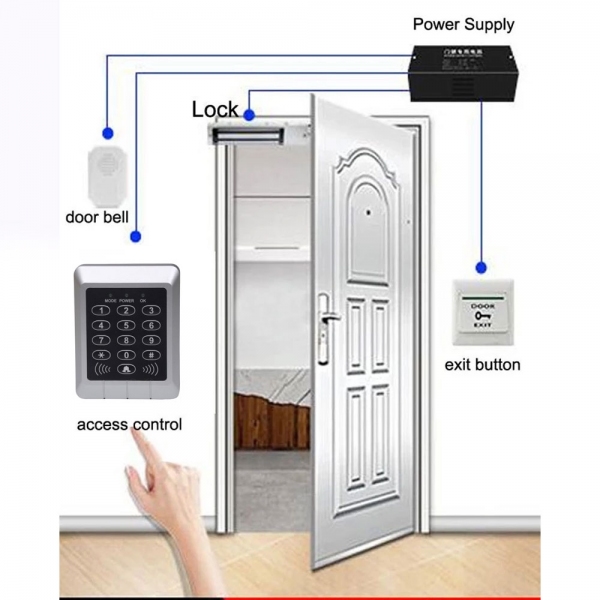

- Wiring Connections: Electric Lock, Exit Button, External Alarm, External reader
- Weight: Approx. 0.2 kg
- Reading range: Within 10cm
- Case Material: Plastic body
- Color: Black
- ISO: 9001, CE, FCC, RoHS approved Genuine Products
- 2 Years warranty* (conditions apply)
