Features:
- 7 inch digital color TFT Screen Indoor unit.
- Resolution: 800 x 480 (16:9 display)
- Water resistance Outdoor Camera unit.
- Lens : 1000TVL, 3.6mm & 92 degree angle
- 4 Wire Connection for Easy installing
- No need Extra Power supply for Lock
- 10 meter Night Vision Distance
- Hands free Video intercom(Clear Video & Audio)
- Volume, Brightness & Contrast adjustable
- 25kinds of rings for your options.
- Combination: 1 outdoor camera with 1-3 indoor monitor
- FCC, CE, RoHS Certified
- Do not disturb mode...

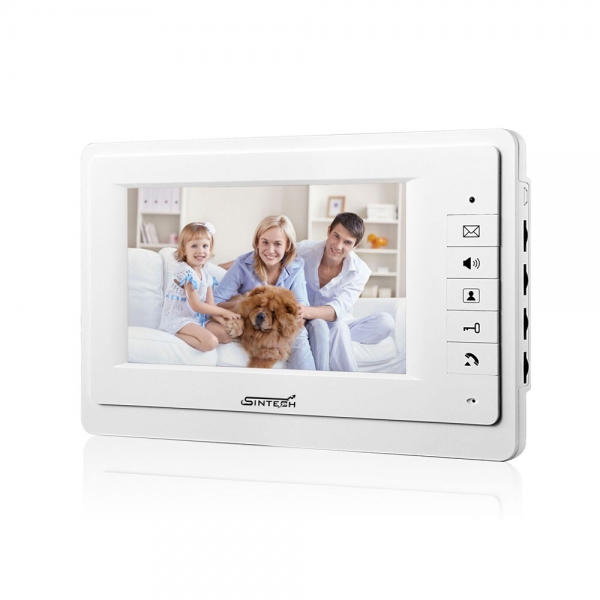

Indoor monitor specifications:
- Display Screen: 16:9 Colored Analog LCD
- Size of Display Screen: 7 inches
- Display Screen Pixel: 800×480
- Wire Connection: Four-wired
- Brightness: 250
- Power Supply: DC15V 1200MA
- Operating Power: 8W
- Auto Shut-off: 1 minute on monitoring and 2 minutes on intercom.
- Intercom Sensitivity: -60dB
- Ring Tone: 16 chord ring tones
- Operating Temperature: -20°C~+50°C
- Idle Temperature: -35°C~+65°C
- Dimension: 240(L)*160(W)*28(D)mm
- Weight: 440g
- Weight of Power Adapter: 140g
- Intercom Delay Time: 120S±10%
- Monitoring Delay Time: 40S±10%
- Standard Wiring: four-core wire (5m free, Max 300m)
- Effective Length of Wire: 50 meters (4*0.65MM²)

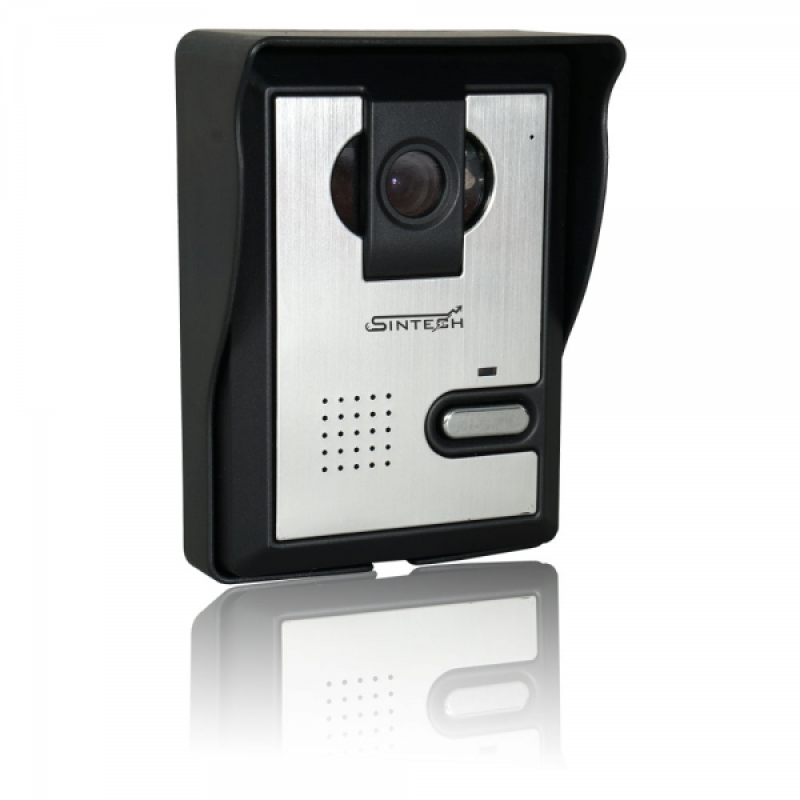

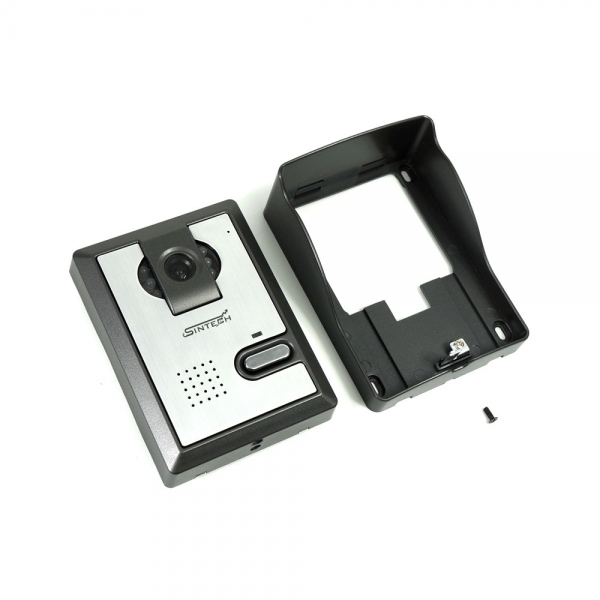

Outdoor unit specification:
- Camera Chip: CMOS or CCD
- Power: DC12V 1000MA (Powered by indoor unit)
- Wire Connection: Four-wired
- Power: 4W
- Definition: 1000 TVL
- System: PAL or NTSC
- Size of Lens: 3.6mm
- Angle of Lens: 92°
- Light Source at Night: Infrared LED
- Operating Temperature: -20°C~+50°C
- Idle Temperature: -35°C~+65°C
