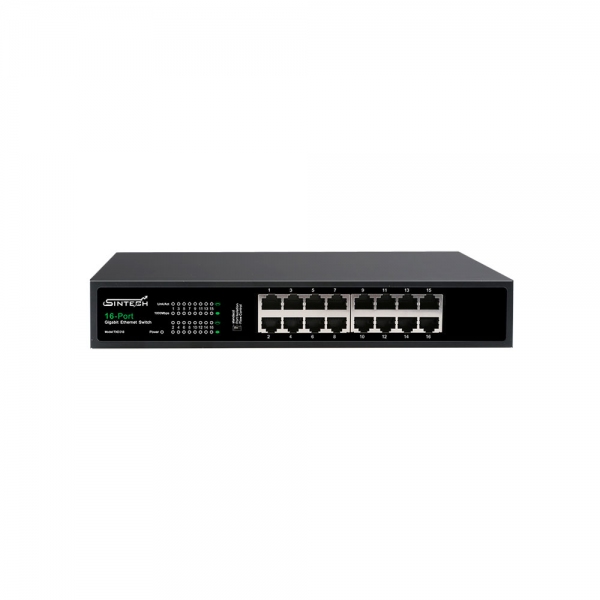

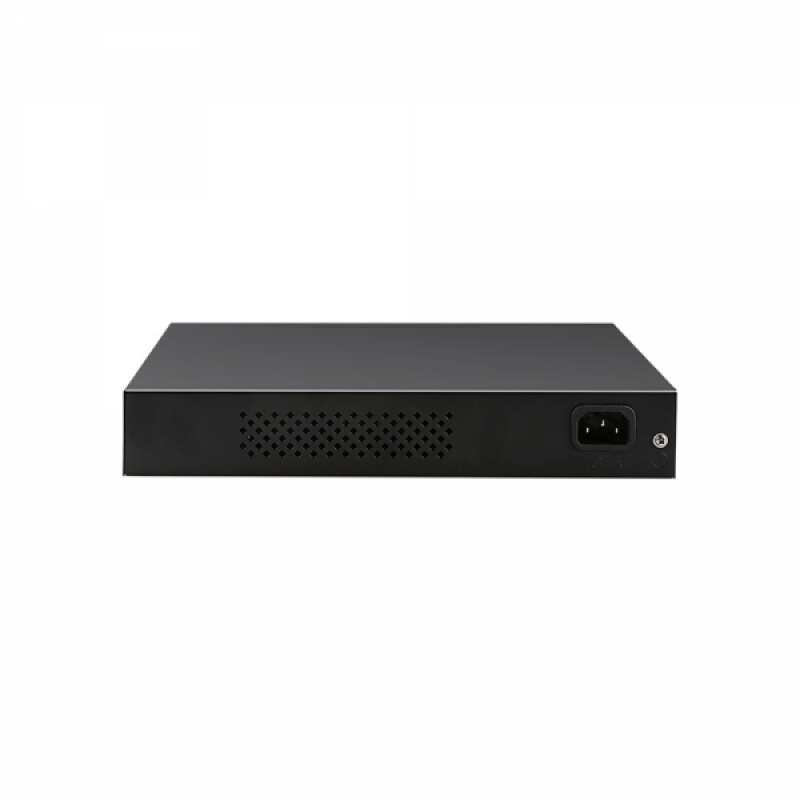

Sintech 16 Port Gigabit Network Switch (1016G)

Home  /  Ethernet Switch

It is a 10/100/1000M gigabit ethernet switch. It has  Realtek heavy-duty chipset that ensures high performance. It is an ISO: 9001, CE, FCC, RoHS approved Genuine Product...

  • 16-Port gigabit network switch (Metal body)
  • RTL8382L Realtek heavy duty chipset
  • Trans. Rate: 10/100/1000Mbps with Auto-Negotiation
  • Switching Capacity: 32Gbps
  • Power Consumption: 9.26W (220V/50Hz)
Model Number : ST-1016G Category : ,
Order Now
  • Model: ST-1016G
  • Chipset: Realtek/RTL8382L
  • Transmission Rate: 10/100/1000Mbps
  • Switching Capacity: 32Gbps
  • Packet Forwarding Rate: 23.8Mpps
  • MAC Address Table: 8K
  • Communication Mode: Full-Duplex & Half-Duplex
  • Standards and Protocols: IEEE 802i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1p
  • Interface: 16 10/100/1000Mbps RJ45 Ports, Auto-Negotiation/Auto MDI/MDIX
  • Forwarding Mode: Store-and-Forward
  • Network Media: 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) & 100BASE-TX/1000BASE-T: UTP category 5, 5e or above cable (maximum 100m)
  • Power Supply: AC Power: 100-240VAC, 50/60Hz
  • 802.1p/DSCP QoS: Yes
  • LED: Power, 1000Mbps, Link/Act
  • Fanless: Yes
  • Jumbo Frame: 10KB
  • Maximum Power Consumption: (220V/50Hz) 9.26W
  • Certifications: CE, FCC, RoHS
  • Operating Temperature: 0°C~40°C(32°F~104°F)
  • Storage Temperature: -40°C~70°C(-40°F~158°F)
  • Operating Humidity: 10%~90%RH non-condensing
  • Storage Humidity: 5%~90%RH non-condensing
  • Body type & color: Metal body / Black
