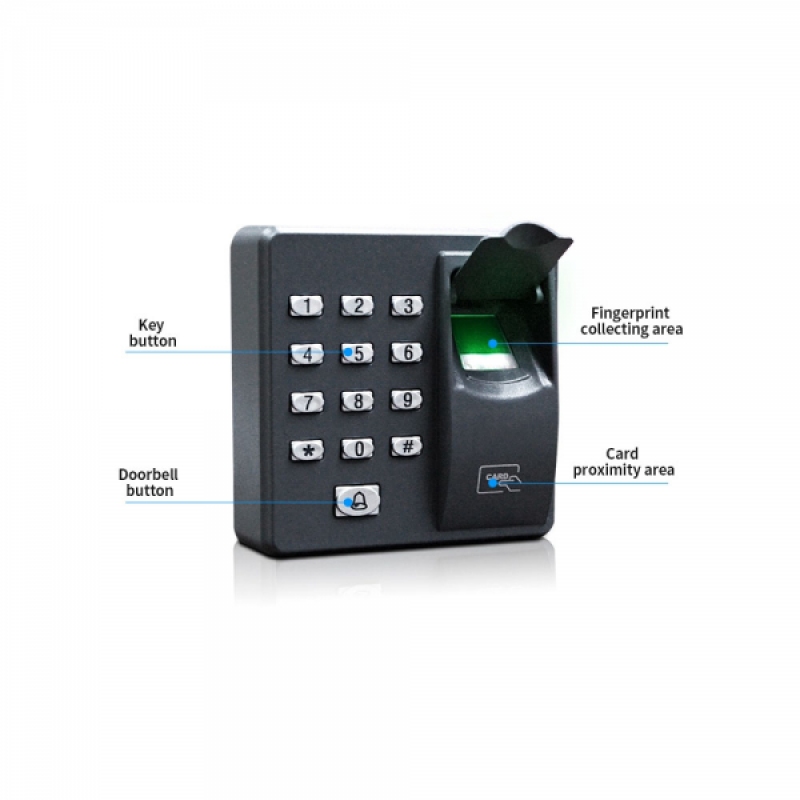

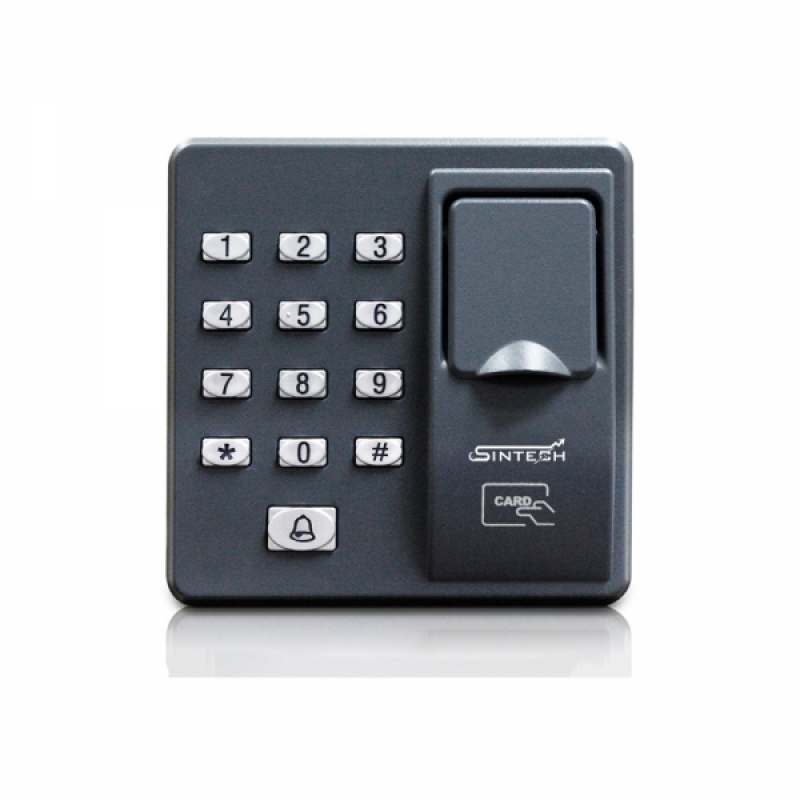

X6 fingerprint access control machine using ZKFinger 10.0 algorithm, infrared film optical fingerprint head, 86 box installation, standard access control features, no network communication, easy to use, convenient to meet customer needs.
- Standalone Fingerprint Access Control System

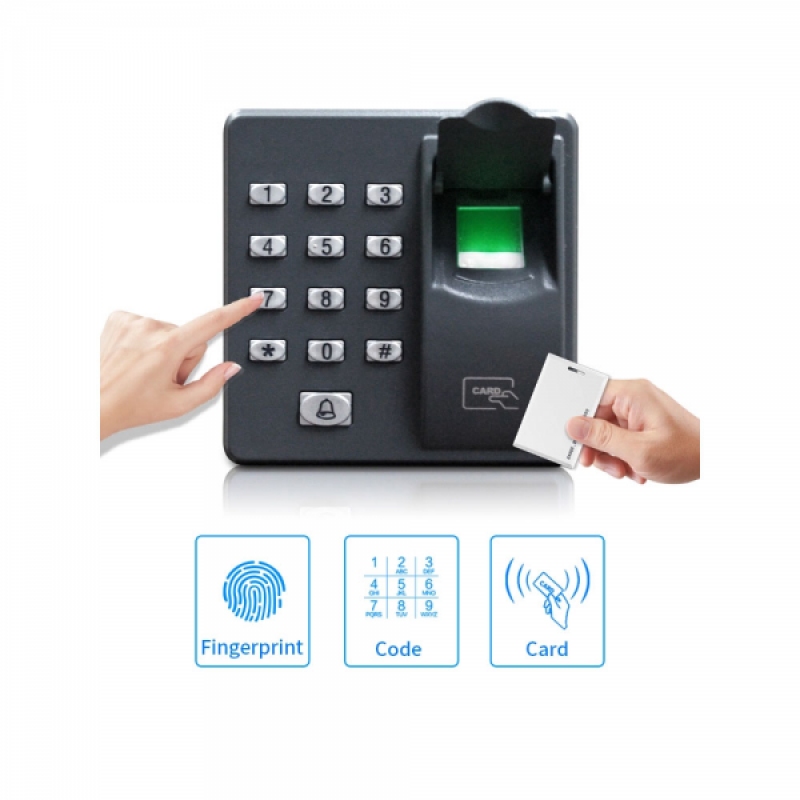

- Support: Finger, EM Card, Password
- Capacity: 500 Fingers
- Capacity: 500 Cards, or Card+Pin
- Capacity: 500 Password
- Built in EM Reader

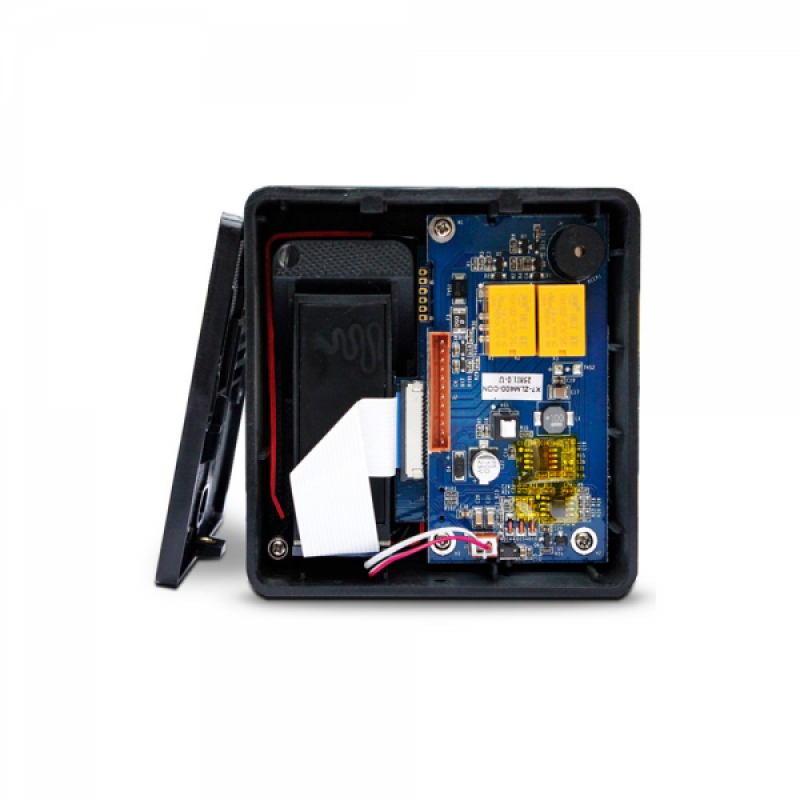

- Built in Controller Board
- LED Display
- Application: Office , Apartment , House
- Size: L88mm x W88mm x H25mm
- Frequency: 125Khz EM card
- Card Reading Distance: 5-15 cm
- Operating Voltage: DC 12V±10%
- Active Current: <100mA
- Idle Current: 25±5 mA
- Voltage: 12VDC, 3A
- Operating Temperature: -45°C~60°C
- Operating Humidity: 10%- 90% RH
- Waterproof: No
- Wiring Connections: Electric Lock, Exit Button, External Alarm,External reader
- Weight: Approx. 0.3 kg
- Reading range: Within 10cm
- Case materiel: Plastic body
- Color: Grey
- ISO: 9001, CE, FCC, RoHS approved Genuine Products
- 2 Years warranty* (conditions apply)
Access control Connections & Setup video:
